Machining Services

We offer a diverse range of machining capabilities and specialize in large-scale and tube sheet drilling applications.

Large-scale Machining
Edmonton Exchanger's Large-scale Machining facility is located in close proximity to our main plant and offers a wide variety of machining services. It was specially designed to handle large
diameter components and boasts equipment that is some of the largest of its kind.

General machining equipment consists of a lathe and a drill press. Three vertical boring mills of various sizes are available, as well as a large-scale horizontal boring mill.

To support our large-scale milling equipment, a 50 ton overhead crane spans the entire length of the machining facility and thus enables transport of large components throughout the shop.

Vertical Boring Mills
Three machines are available for turning, facing, and boring. Our smallest boring mill handles material up to 68" diameter x 5'-0" high (1,727 mm x 1,524 mm).

A larger machine will handle material up to 13'-0" diameter x 10'-0" high (3,962 mm x 3,048 mm). Our largest vertical boring mill also has drilling and slotting capabilities. It can handle material up to 24'-0" diameter x 10'-0" high (7,315 mm x 3,048 mm), and a weight of 50 tons.

Horizontal Boring Mill
The horizontal mill has a travel of 156" vertical and 360" horizontal (3,962 mm V x 9,144 mm H). Its applications include facing, slotting, boring, drilling, and tapping.

General Machining
- Lathe: 32" x 108"
- Drill Press: 72" (1,829 mm)

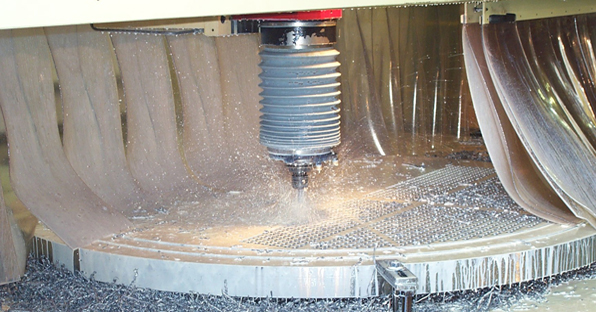

CNC Tube Sheet Drilling
Our QuickDrill 120 CNC enables us to offer a wide range of drilling, slotting, milling, and boring services. It boasts a machining envelope of 120” x 120” x 15” (3,048 mm x 3,048 mm x 381 mm), and can accommodate material up to 141” x 154” (3,581.40 mm x 3,911.60 mm) in size.

Our QuickDrill 200 CNC also features drilling, slotting, milling, and boring services, and additionally enables us to circular interpolate off center. It features a machining envelope of 200” x 120” x 30” (5,080 mm x 3,048 mm x 762 mm), and accommodates material up to 29” (736.60 mm) in height, and a drilling capacity of up to 16” (406.40 mm).
